Self Bunded Skid Stations
Self Bunded Skid Stations

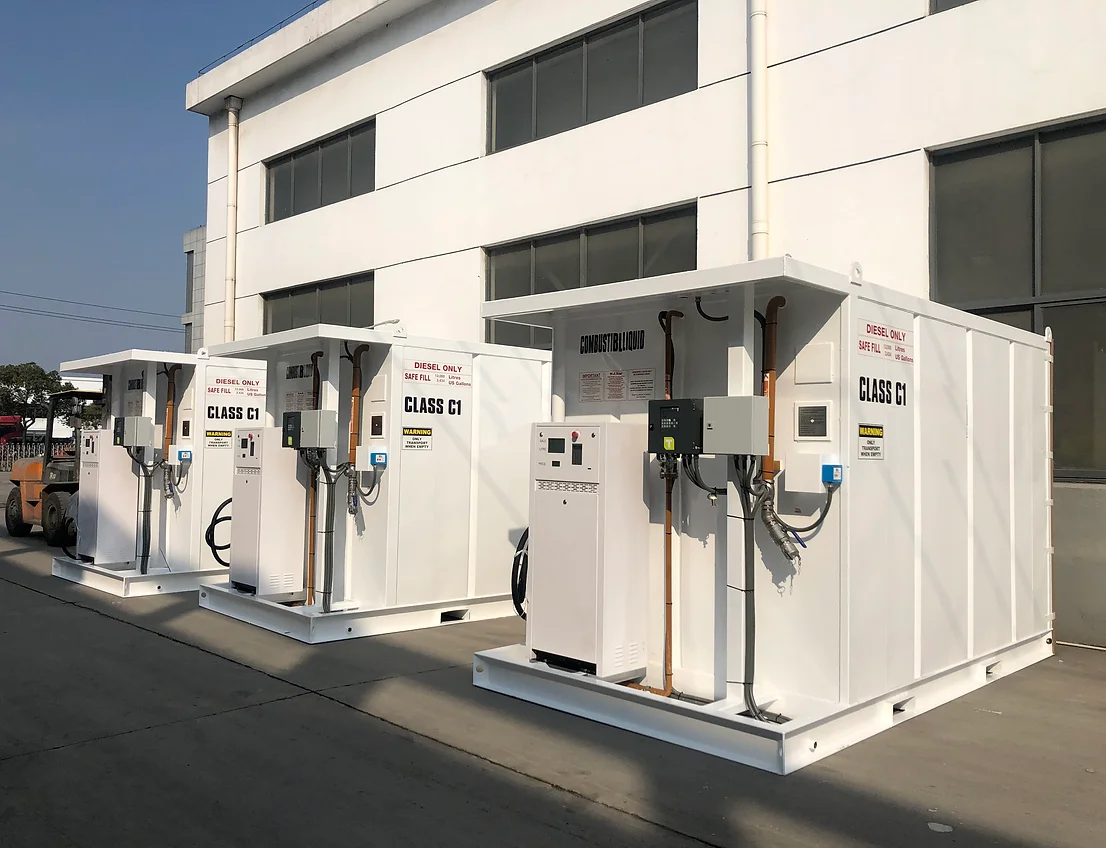

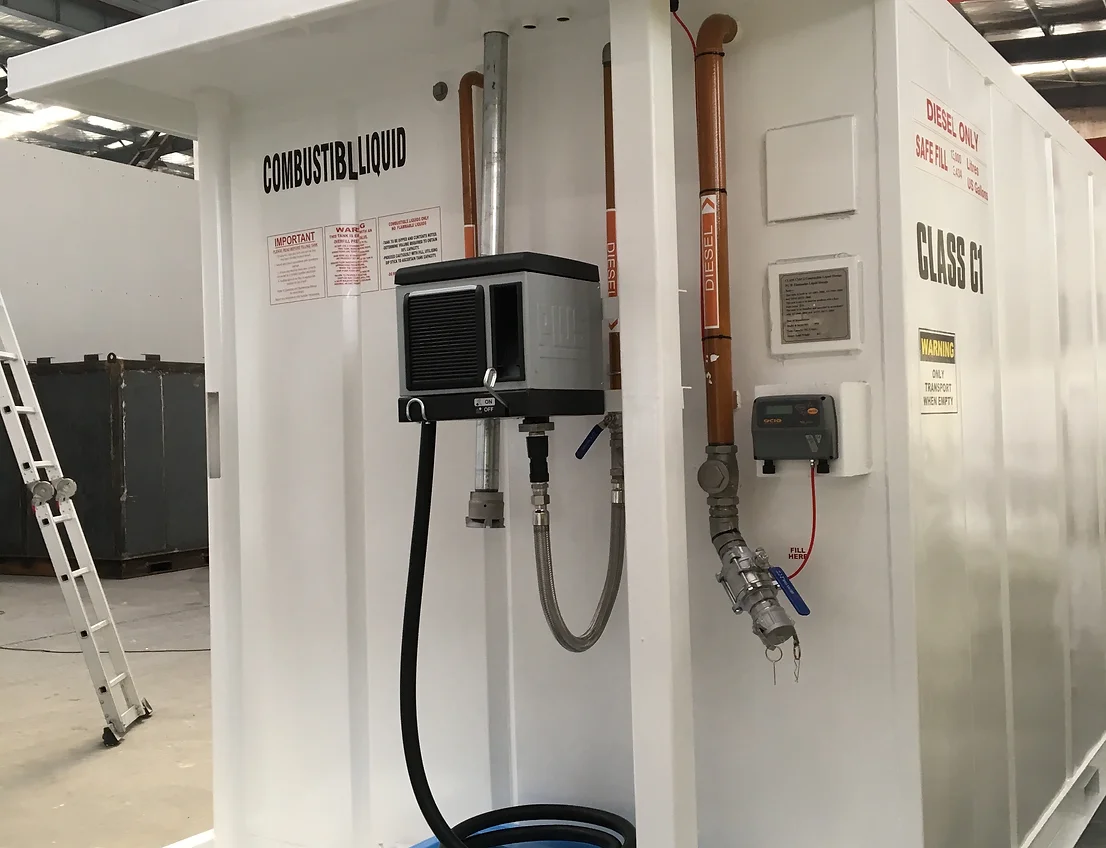

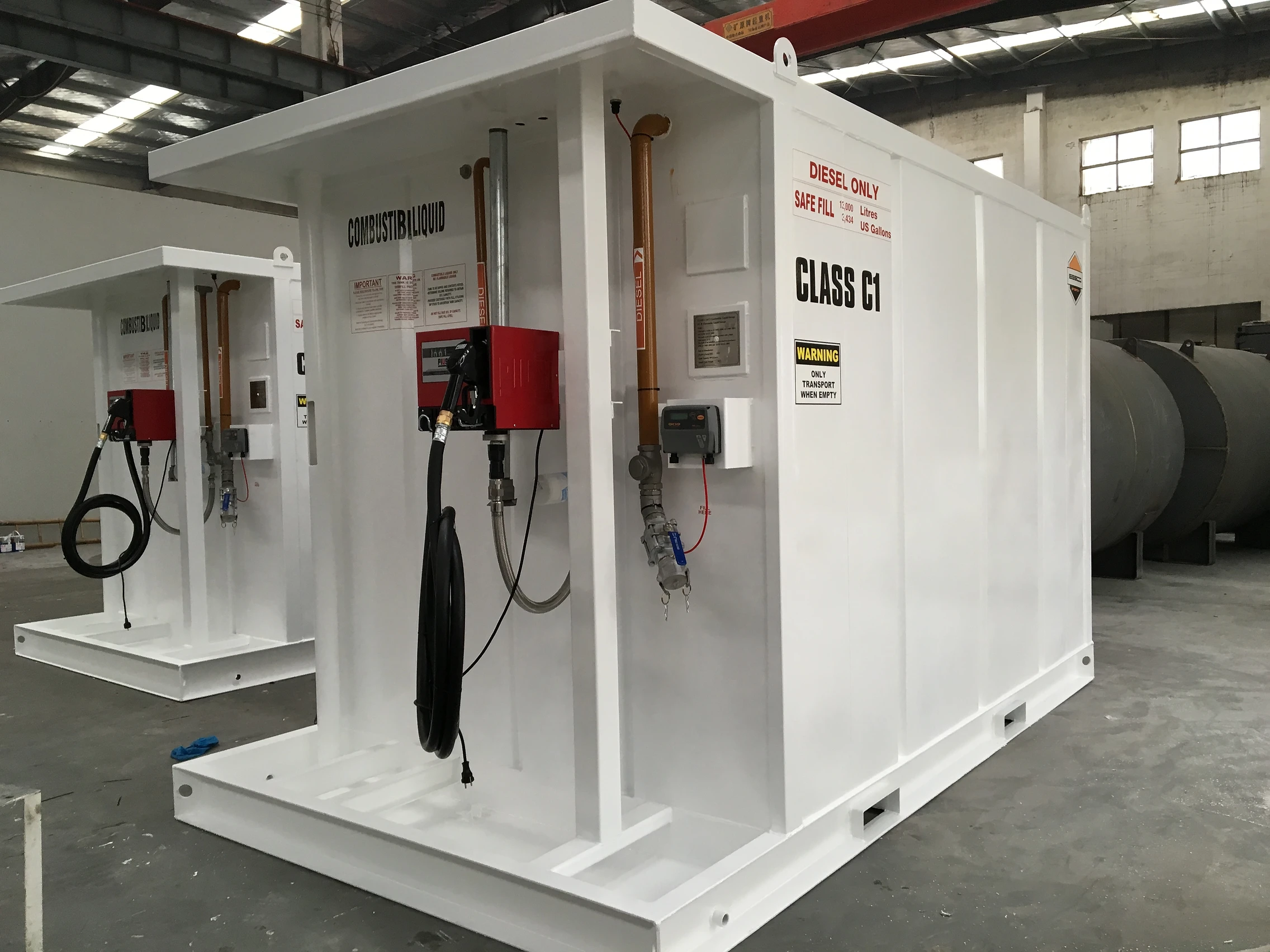

Essco Energy’s Self Bunded Skid Stations are engineered to meet Australian and UL standards, offering secure, double-wall steel construction with corrosion protection.
Designed for storing diesel, ULP, kerosene, and oil, these tanks include features like overfill protection, lockable pump bunds, and safe access platforms. Optional add-ons include pumps, flow meters, and automatic tank gauging, allowing for customizable storage solutions. With a 3-year warranty on tanks and a 12-month warranty on parts, Essco Energy provides reliable, long-term storage solutions.
FEATURES
- Engineered to Australian and UL Standards
- AS1940 AS1692 UL142
- Self Bunded & Secure
- Double Wall Steel Construction
- Lockable Pump Bund
- Protected Against Corrosion
- 3-layer Hempel Epoxy Coating
- Stainless Steel and HDG Fittings
- Suitable for Diesel, ULP, Kerosene, Oil/Waste Oil
- 3 Year Warranty on Tank
- 12 Month Warranty on Parts
| Model | Safe Fill (L) | Weight (Kg) | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|---|---|
| Skid Station 5000L | 4,750 | 1,862 | 1,950 | 2,200 | 2,500 |
| Skid Station 13000L | 12,350 | 2,975 | 3,950 | 2,200 | 2,500 |
| Skid Station 17000L | 16,150 | 3,290 | 4,717 | 2,200 | 2,500 |
Contact us for alternative capacities and customization options.
ADDITIONAL FEATURES
- Overfill protection valve
- Overfill protection alarm
- Anti-syphon valve
- Breather Vent
- Calibrated dipstick
- 3-inch & 2-inch Spare Access Points
- Lockable fill point with lock handles
- Ladder Access to Inner Tank
- Safe access platform
- Fold Out Ladder Access
- Ladder access to inner tank
- Safety signage
- Customisable decals
OPTIONAL ADD ONS
- FILLRITE/ PIUSI/GPI DC and AC pumps
- Flowmeters & Hose reels
- Bowser systems
- FMS controllers
- Automated tank guaging
- LED floodlights
