Aviation Tanks
Aviation Tanks

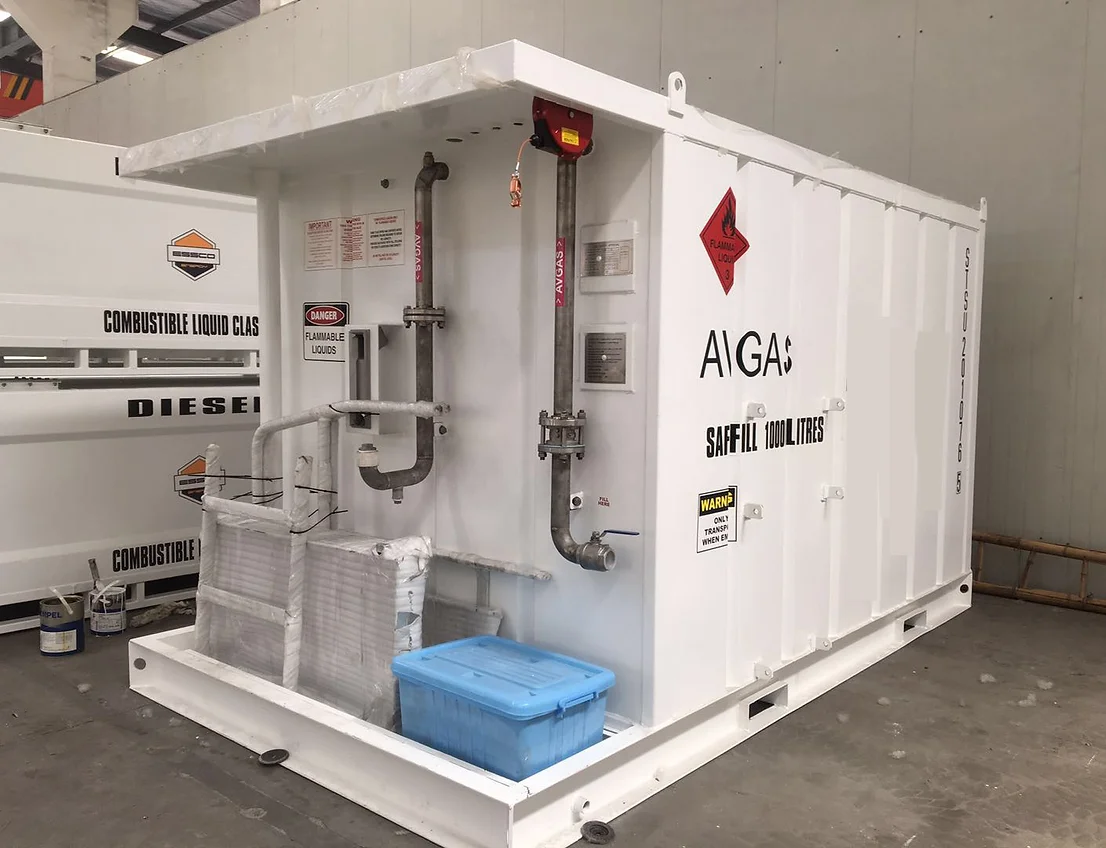

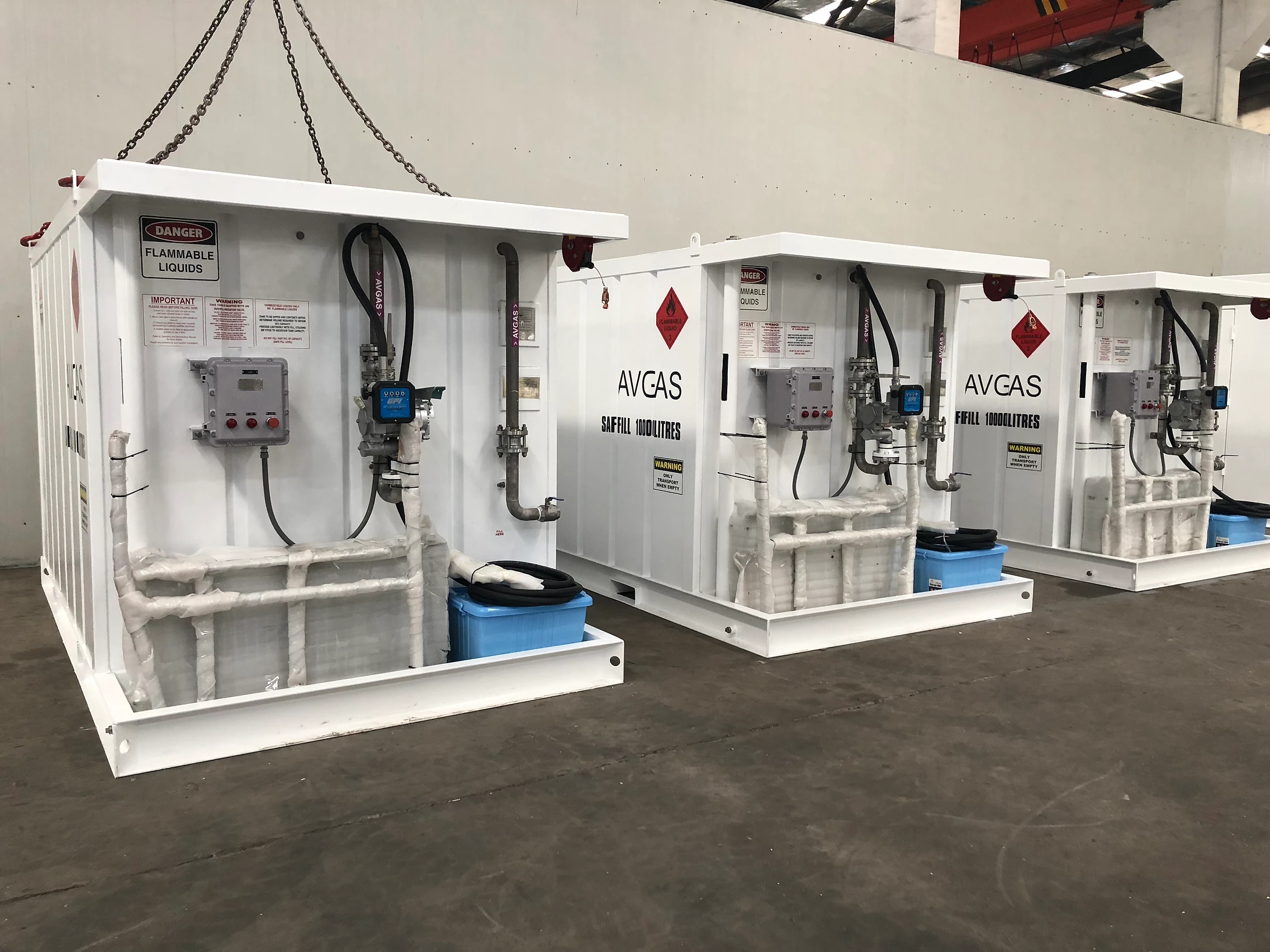

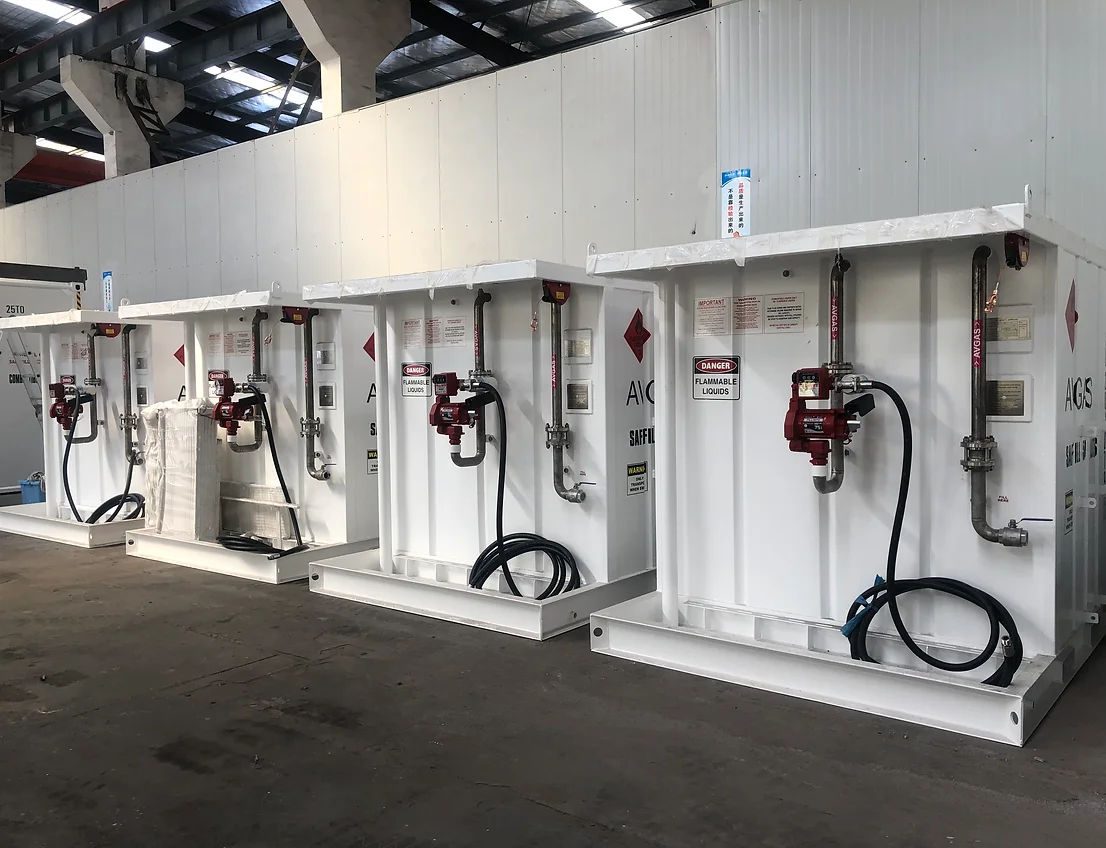

Essco Energy’s Aviation Tanks are specially designed for storing Avgas and Jet Fuel, featuring stainless steel construction with self-bunded, double-wall protection.
These tanks are equipped with corrosion-resistant coatings, overfill protection, anti-syphon valves, and lockable pump bunds for maximum safety and efficiency. Customizable with optional add-ons like flow meters, submersible pumps, and LED lighting, the tanks offer reliability for aviation fuel storage with a 5-year warranty on tanks and a 12-month warranty on parts.
FEATURES
- Engineered for Avgas & Jet Fuel
- stainless steel primary tank
- Stainless steel pipework and fittings
- Self Bunded & Secure
- Stainless steel + steel double wall construction
- Lockable Pump Bund
- Protected Against Corrosion
- Stainless Steel and HDG Fittings
- Suitable for Avgas & Jet Fuel
- 5 Year Warranty on Tank
- 12 Month Warranty on Parts
| Model | Safe Fill (L) | Weight (Kg) | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|---|---|
| T12 (SS304 Internal Tank) | 11,240 | 4,944 | 2,993 | 2,438 | 2,896 |
| T30 (SS304 Internal Tank) | 29,350 | 7,615 | 6,058 | 2,438 | 2,896 |
| T55 (SS304 Internal Tank) | 57,933 | 12,469 | 12,192 | 2,438 | 2,591 |
| T68 (SS304 Internal Tank) | 65,570 | 13,459 | 12,192 | 2,438 | 2,896 |
| T100 (SS304 Internal Tank) | 96,132 | 17,000 | 14,630 | 2,438 | 3,200 |
| T110 (SS304 Internal Tank) | 107,656 | 17,969 | 14,630 | 2,438 | 3,550 |
| T12 (Epoxy-lines internal tank) | 11,240 | 4,944 | 2,993 | 2,438 | 2,896 |
| T30 (Epoxy-lines internal tank) | 29,350 | 7,615 | 6,058 | 2,438 | 2,896 |
| T55 (Epoxy-lines internal tank) | 57,933 | 12,469 | 12,192 | 2,438 | 2,591 |
| T68 (Epoxy-lines internal tank) | 65,570 | 13,459 | 12,192 | 2,438 | 2,896 |
| 5kl Avgas Skid Station | 5,000 | 2,300 | 3,920 | 1,147 | 2,550 |
| 10kl Avgas skid station | 1,000 | 3,205 | 3,920 | 2,250 | 2,504 |
Contact us for alternative capacities and customization options.
ADDITIONAL FEATURES
- Overfill protection valve
- Overfill protection alarm
- Anti-syphon valve
- Breather Vent
- Calibrated dipstick
- 3-inch & 2-inch Spare Access Points
- Lockable fill point with lock handles
- Sloped Tank floor
- floating suction
- low point inspection dish with sampling line
- insulated interstitial space
- Safety signage
- Customisable decals
OPTIONAL ADD ONS
- Submersible pumps
- FILLRITE/ PIUSI/GPI aviation pumps
- Flowmeters & Hose reels
- Automated tank guaging
- EX-Rated LED floodlights
